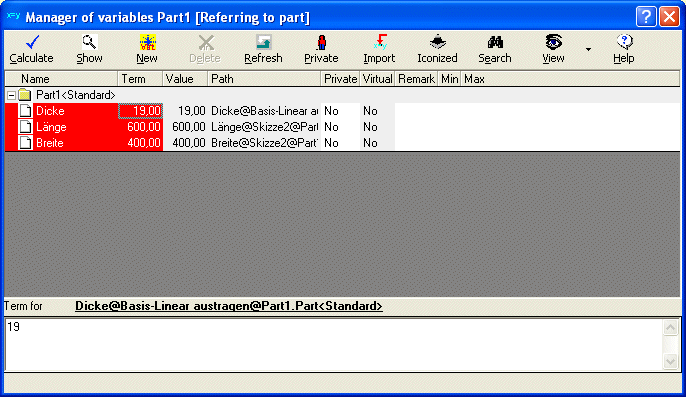

VariXPASCAM shows the assembly hierarchy in the variable table exactly similar to the Feature-Manager. The similar layout enables the user to have an intuitive approach and a fast finding of the relevant dimensions is guaranteed.

If you have selected a subassembly part or a feature or a sketch in the Feature-Manager and activate the variables management, it will jump to the corresponding, available dimensions automatically. Enabling a quick access to all dimensions, equations and conditions, including the capability of immediate changes and modifications.

Continue your tour through VariXPASCAM.
