Quick joints |
 |
    |
Mating of
components is a key element of PASCAM WoodWorks.
In many cases new information is generated just by connecting two or
more parts with each other. This information can be translated into
manifold, automated operations.

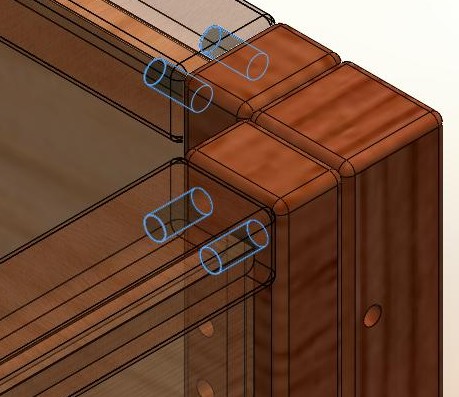

By applying and inserting „PASCAM
Quick joints“ not only the physical mating of the components in the
assembly is modeled, but also all corresponding
templates and patterns for the drilling, routing, cutting and sawing.

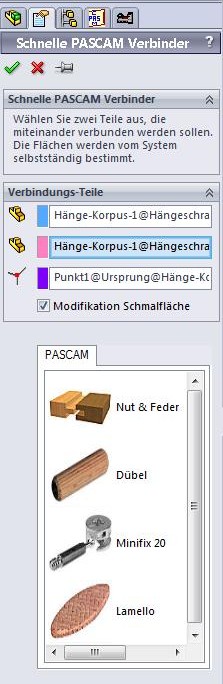

A user-defined joint-database serves as the technical basis for the PASCAM
Quick joints. This woodworking joint library is fully open for
user-generated content regarding all typical, woodworking fasteners and
joining elements. This database can be efficiently used to automatically assemble
any woodworking models with common woodworking joints, like i.e. dowels, minifix or tongue and groove.
 |
The
highly flexible PASCAM
Quick joints are universally applicable in all woodworking
areas, i.e. at cabinet makers or manufacturers, whose products
are based on face frame or frame construction (doors, windows).
PASCAM
Quick joints are offering:
- Application of all geometric mating options
of
SolidWorks®
available
- Modelling and Application of all typical
woodworking fasteners, joining elements and techniques
- The content of the PASCAM
Quick joint library is fully user generated, based on the
typical company-specific joining elements and techniques
- Freely configurable with any kind of
automatic PASCAM
Modification for drilling, routing, cutting and sawing machining
templates
- Easy compilation and storage of standardized,
knowledge-based design and joining processes of the user company in
the PASCAM
Quick joint database
- Central user administration/authorisation for
the PASCAM
Quick joint database
- Company-wide server access to the PASCAM
Quick joint database for all employees involved in the design
process
Benefits when using
PASCAM Quick joints
at the design process:
- User-generated, data-based woodworking joint
library for efficient modelling in all woodworking areas
- Automatically assembling of woodworking
components with woodworking fasteners and joining elements
- Practically relevant reproduction of
individual, every-day modelling jobs in the user company - due to
user generated, company-specific content
|
|
|
